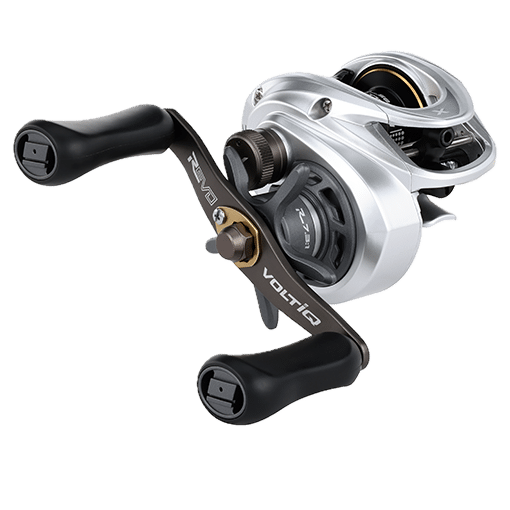

Abu Garcia Revo X VoltiQ Bait Cast Reel

Built on the proven Revo X platform, the Revo X VoltiQM low profile baitcasting reel delivers advanced electronic casting control. Abu Garcia's innovative VoltiQ electronic braking system reads spool rotation in real-time, automatically adjusting brake pressure to optimise casting performance across any situation. The result is a highly adjustable reel that adapts to your technique, reducing backlashes and extending your casting distance. Whether you're precision casting in tight cover or launching distance casts, VoltiQ™ technology gives you the control to fish with confidence.

• Electronic Cast Control Braking System – Maximises casting performance while minimizing backlashes.
• 7 stainless steel ball bearings + 1 roller bearing provides smooth operation.
• A-Symmetric body design allows for a more compact and ergonomic reel.
• C6 carbon frame and side plates provides a lightweight and strong platform.
• Duragear™ Gen II gear system provides a more efficient gear system while improving gear durability.
• 90mm bowed Aluminium handle with co-moulded oversized knobs for greater grip.
• Carbon Matrix™ drag system provides smooth, consistent drag pressure across the entire drag range – 20lb/9kg.

• Model	Mono Capacity yd/lb	Braid Capacity yd/lb	Weight	Gear Ratio	Recovery Rate	Bearing Count	Max Drag lb
  REVO5XVIQLP	105/10 85/12 60/17	110/20 85/30 60/50	215g	6.7:1	69cm	7+1	20lb / 9.1kg
  REVO5XVIQLP-HS	105/10 85/12 60/17	110/20 85/30 60/50	215g	7.3:1	76cm	7+1	20lb / 9.1kg
  REVO5XVIQLP-L	105/10 85/12 60/17	110/20 85/30 60/50	215g	6.7:1	69cm	7+1	20lb / 9.1kg
  REVO5XVIQLP-HS-L	105/10 85/12 60/17	110/20 85/30 60/50	215g	7.3:1	76cm	7+1	20lb / 9.1kg
