Battery Isolation Switch 4 POS by Sam Allen at Addict Tackle

9330420195606

Battery Isolation Switch 4 POS

Name: Battery Isolation Switch 4 POS
Brand: Sam Allen
SKU: 9330420195606
Price: 49.95 AUD
Availability: InStock

$49.95

Discover the RELAXN® Compact Battery Isolator Switch, featuring 4 positions for dual batteries, available at Addict Tackle. Ideal for efficient power management...more

Add To Tacklebox

PRODUCTS > Lighting & Electrical

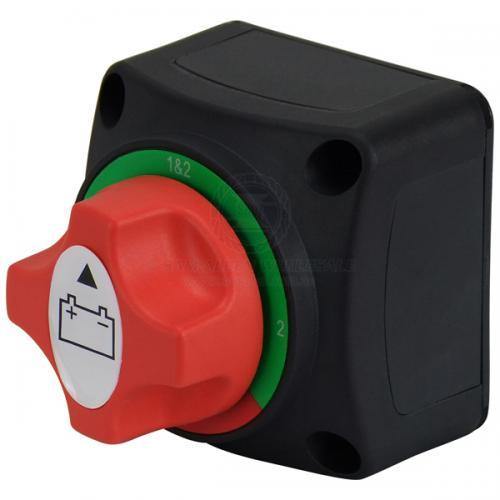

RELAXN® COMPACT BATTERY ISOLATOR SWITCH - 4 POSITION

FEATURES

• Compact battery isolator switch with 4 positions for dual batteries.
• Surface mounted with slide-out cable entry panels.
• Switching positions: off / 1 / 1&2 / 2.
• 1000A @ 12V for 30 seconds.
• 500A @ 24V for 30 seconds.
• 250A @ 50V for 30 seconds.
• 300A @ 12V continuous load maximum.
• 150A @ 24V continuous load maximum.
• 75A @ 50V continuous load maximum.
• Mounting screws supplied.
• 1-year warranty.

SPECIFICATIONS

Part No.	530786
Cranking Rating	1000 Amps

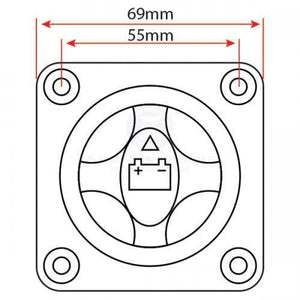

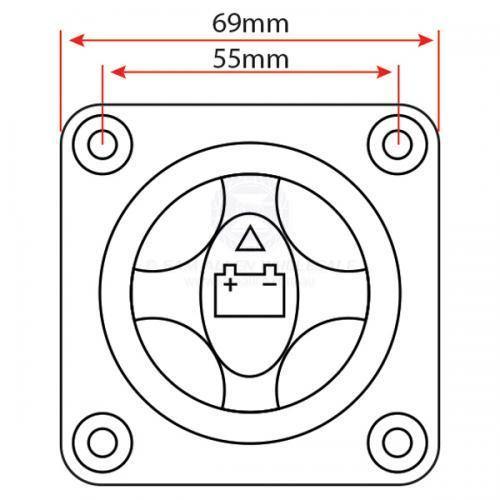

Dimensions (L x W x D)	69mm x 69mm x 74mm
Terminal Stud Size	5/16"-18UNC
Mounting Holes	Dia. 5mm r/h
Unit Qty	1
Function	4
Volts	12/24V
Max. Continuous Load	300 Amps

Battery Isolation Switch 4 POS
