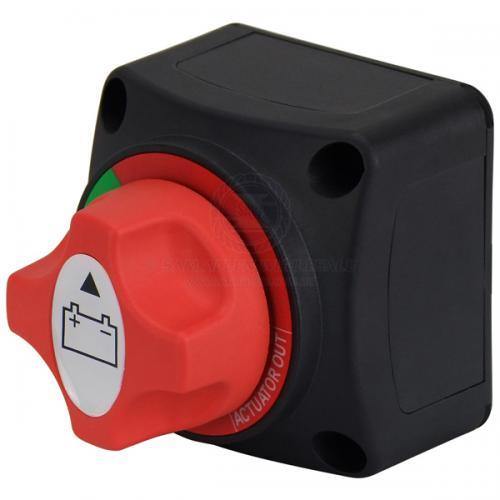

Battery Isolator Switch Twist Knob
Regular price
$42.00
Unit price
Tax included
Shipping calculated at checkout.
Battery Isolator Switch Twist Knob is backordered and will ship as soon as it is back in stock.
Pickup currently unavailable at 13 Greenway Dr
Delivery and Shipping
Delivery and Shipping
FREE Shipping over $150
Shipping Policy
| Compact Battery Isolator Switch |
|
• Compact battery isolator switch with two positions for a single battery. • Durable, weather-resistant battery switch with brass terminals and heavy-duty plastic construction, ideal for marine and automotive applications. • Suitable for applications up to 50VDC. 1000A @ 12V for 30 seconds. 500A @ 24V for 30 seconds. 250A @ 50V for 30 seconds. 300A @ 12V continuous load maximum. 150A @ 24V continuous load maximum. 75A @ 50V continuous load maximum. • Mounting screws included. • Two-position features: On/Off. • One-year warranty. |
| SPECIFICATIONS (Click Part No. for More Details) |
| Part No. | 530781 |
| Cranking Rating | 1000 Amps |
| Dimensions (L x W x D) | 69mm x 69mm x 74mm |
| Terminal Stud Size | M10 x 19mm |
| Mounting Holes | Dia. 5mm r/h |
| Unit Qty | 1 |
| Function | 2 |
| Volts | 12/24V |
| Max. Continuous Load | 300 Amps |
| Note | Depress knob before turning from "Actuator Out" to "Off" position. |
- Type: Boat Acc
